Measurements as the Key to Transparency

Alexander Azimov
0 You have liked this article 0 times.

We built a tool to visualise network latency measured with RIPE Atlas.

If you are looking for services such as IP-transit, MPLS channels, DDoS mitigation, you can choose from a variety of companies. But often it is difficult to compare offers and companies in terms of actual service quality. There are a number of organisations that compare market offers, but often they look at the market share, a company’s financial condition and other business metrics that are not necessarily relevant to the quality of a  service you require. Also, most of these comparisons are not available free of charge.

Fortunately, the situation is changing. Recently we have been given an opportunity to create global scale measurements with services such as PlanetLab, NLNOG RING and, of course, RIPE Atlas. RIPE Atlas has become the biggest measurement platform, with a rich API as the primary user interface. However, an output of API requests is not always human-readable; it still requires a set of tools on top of the API, to make data easily understandable. So we decided to work on a fix.

Visualising Latency

The Qrator.Radar team developed a set of tools that include several typical experiments, with a primary focus on visualising latency maps and DNS output. We wanted to create an out-of-the-box tool and avoid some limitations at the same time (such as the limitation that only allows you to use 1,000 RIPE Atlas probes per measurement). At the moment the tool contains the following parts:

  • RIPE Atlas heat map: draws a latency heatmap for a specified target
  • RIPE Atlas country map: draws an average latency for a specified target of selected countries
  • RIPE Atlas nslookup map: visualisation tool for DNS output
  • RIPE Atlas reachability: a diagnostic tool that measures the availability of specified targets and in addition collects traceroutes from probes that didn’t get the echo-reply

There are few additional flags. A full description and the source code can be found on our GitHub repoThe tool is easy to install and to use. All you need is RIPE Atlas credits.

To demonstrate the capabilities of this toolkit, we anonymously compared four global (as specified in their marketing materials) DDoS-mitigation providers. In all experiments, only the main page of a given provider’s website was measured. Primarily we were comparing network delays.

Why is it important to compare DDoS-mitigation services in this particular manner?

Historically, DDoS-mitigation services were created as on-demand services or hardware, online precisely at the time of the attack. However, for many high-risk and high-margin services, the constant switching of the “On” and “Off” states still leads to temporary inaccessibility. As a result, to avoid downtime, such services are gradually moving to a constant and continuous traffic filtering model, instead of on-demand activation. That imposes additional requirements on low latency across the network. According to recent Akamai research, people react to bad video quality and buffering issues, which are connected to network latency. Pings affect online games and gamers, making it impossible to competitively play in some cases. Network latency even affects how we search and make search-based decisions on the Web. Those additional milliseconds can really have a significant impact.

Measurement Results

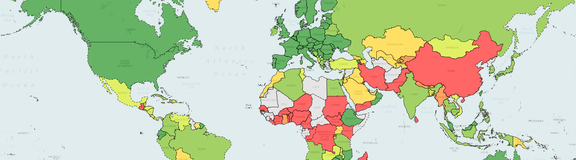

The first DDoS mitigation company we measured claims, on its website, that their network contains more than 100 PoPs. The figure below looks great: the global delays are rather low (green = low latency; red = high latency).

Figure 1: The first DDoS mitigation company we measured showed relatively low latency on a global level


Figure 2 below shows results for a company that has almost 40 points of presence. As you can see latency is high in several regions (those in red).

Figure 2: Measuring a company with almost 40 PoPs - latency is high in several regions


Next, we measured a company with only 10 PoPs worldwide. It immediately changes the latency overall, showing high delays in most parts of the world.

Figure 3: Company with 10 PoPs shows high latency in almost all regions


However, if we look at another service provider who also has 10 points of presence, we see a much better picture.

Figure 4: Another company with 10 PoPs provides a much better picture (low latency in more regions than the one in Figure 3)


DNS Output

The number of PoPs and their geolocation has a strong influence on the quality of the service. However, using this as the only criterion is not a silver bullet. Delays in networks with the same number of points of presence can produce completely different results, as a network with a smaller presence could still have low network delays in a given region. Let’s look at these competitors from a different angle: How can DNS output be used when comparing DDoS-mitigation providers?

Figure 5: Comparing DDoS mitigation providers based on DNS output


The maps in Figure 5 show the output of IP lookup, where different colours correspond to different IP addresses. From that, we can easily detect that the two operators on top are using DNS balancing as a mechanism for traffic engineering. Why is that important? Both BGP anycast and GeoDNS have the same primary goal of keeping traffic local and, as a result, reducing RTT time for end users.

GeoDNS traffic balancing is very popular among CDN providers. In comparison to BGP anycast, a GeoDNS system is easier to design and maintain, and there is a set of ready to use DNS-servers, while a global BGP anycast network is still a piece of art. Nevertheless, what applies to CDNs is not always applicable to DDoS mitigation. Unlike regular users, bots can merely ignore the resolver of a local DNS server and might therefore easily concentrate its load on a dedicated region or PoP, eventually resulting in disrupting geo-distributed networks piece-by-piece.


This example shows how the RIPE Atlas API, combined with a humanly readable visualisation could be used to get better insights into the quality of service for a particular service provider. We hope that the community finds other use cases so that we can extend this toolset. This will hopefully help to increase transparency on the ISP market.
