This is a brief tutorial that explains how to monitor BGP prefixes easily and effectively. For this purpose, we will use an open-source application named BGPalerter which is ready to go and requires almost no configuration. Currently, we use this solution at NTT, one of the largest global providers, on our tier-1 Global IP Network.
We all know by now that the monitoring of the correctness of the Border Gateway Protocol (BGP) is a fundamental activity for any actor operating on the public Internet. Monitoring BGP is not only useful for identifying hijacks committed by other Autonomous Systems (AS), but especially for timely identifying what your AS is doing. Indeed human error is the first cause of network incidents, and being able to immediately identify a prefix you were not supposed to announce (e.g. a typo) or a loss of visibility due to a wrong just-deployed configuration can drastically reduce the impact on the availability of both your and other operators' services.
In an Internet composed of thousands of entities, with different levels of automation and expertise, providing free and easy-to-use tools for monitoring the correctness of BGP is a key operation in improving the stability of the global Internet. For this reason, at NTT we are putting a lot of effort into developing and releasing open-source some of the tools we use to operate one of the world's largest global tier-1 IP backbones. For the specific task of monitoring BGP, we developed BGPalerter, which we released on GitHub under the BSD-3 license. We will use this application in the tutorial.
At the end of this tutorial you will be able to:
- Monitor your prefixes, just by running an application, no other dependencies or configurations
- Receive real-time alerts if something happens
- Monitor hijacks and loss of visibility
- Monitor if your AS starts to announce prefixes you were not expecting (e.g. a typo in the configuration)
- Automatically store the BGP updates that triggered an alert (for later troubleshooting)
- Monitor the uptime of the monitoring process (e.g. integrate it in Nagios)

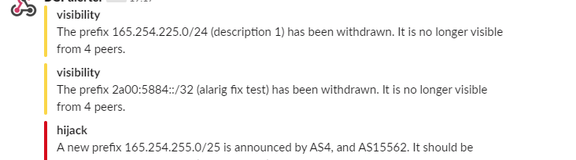

Figure 1: Example of alerts reported by BGPalerter in Slack
BGPalerter can be executed from the pre-compiled binary, the source code, or in Docker. Here we will use the binary. Refer to the documentation if you are interested in the source code or Docker.
Download the binary here (BGPalerter is currently compiled for Linux, Mac, and Windows.)
Execute the binary (e.g.
chmod +x bgpalerter-linux-x64 && ./bgpalerter-linux-x64)
The first time you run it, the auto-configuration will start.
That’s all, installation completed!
The first time BGPalerter is executed, a configuration wizard will start. These are the questions asked:
- The file prefixes.yml cannot be loaded. Do you want to auto-configure BGPalerter?
- Answer "yes" to proceed with the auto-configuration wizard
- Which Autonomous System(s) do you want to monitor?
- You can monitor multiple AS numbers (comma-separated). You can have user groups to notify specific users about specific AS numbers.
- Are there sub-prefixes delegated to other ASes?
- Answer "yes" to this question if at least a portion of the address space assigned to you is announced by another AS.
- Do you want to be notified when your AS is announcing a new prefix?
- Answer "yes" to this question if you want to be notified every time a prefix that was not part of the previous configuration starts to be announced.
When the auto-configuration is completed, BGPalerter will start monitoring! Next time you run it, the monitoring will start immediately since the configuration is persisted (in config.yml and prefixes.yml).
If you get a warning that some of your prefixes are not covered by ROAs, I would suggest you to review prefixes.yml by hand.
How will I be notified if something happens?
By default you will find all the logs inside the directory
logs/. In particular, alerts are going to be collected in the
reports-YYYY-MM-DD.log files. In config, under the "reportFile" section, you can configure additional parameters for the file reporting, including the "persistAlertData" parameter, which if it's set to true, it will enable the storing of the BGP updates that triggered alerts.
It goes without saying that if none of the alerting conditions are met (e.g. no hijacks happened), nothing will be logged in the report files.
Of course, this is not the most efficient way to get notified. BGPalerter is able to report the alerts by using various channels, including email, Slack, Kafka, Webex, Alerta dashboard, Syslog, or any HTTP end-point. This list is constantly growing.
I am going to show below how to enable email notifications - the same exact process applies to all the other channels.
Figure 2: Example of alert you will receive by email if somebody hijacks one of your prefixes
The best way to enjoy all the features of BGPalerter is to edit the
config.yml file automatically generated on its first execution. In this file you will find the configuration for all the possible modules of BGPalerter. The only thing that you need to do is uncomment the related file portion. Nothing has to be downloaded or added to BGPalerter - the binary contains already all the modules. While the modules are already in the binary, they are not loaded and executed if the related section is commented in
In our case, to enable the email reporting, we have to uncomment the "reportEmail" section. This section includes some parameters that need to be configured, such as
notifiedEmails. This module allows for local or remote smtp servers, see here the documentation.
- file: reportEmail channels: - hijack - newprefix - visibility params: senderEmail: bgpalerter@xxxx smtp: host: smtp.example.org port: 465
secure: true auth: user: username pass: password notifiedEmails: default: - firstname.lastname@example.org
Remember, every time you edit
prefixes.yml you have to restart the BGPalerter process.
Uptime of BGPalerter
For a production system you should monitor that BGPalerter is up and running. This step is not mandatory, but strongly suggested.
config.yml you will find a
processMonitors section which contains two modules:
processMonitors: - file: uptimeApi params: useStatusCodes: true host: null port: 8011 - file: uptimeHealthcheck params: url: url_to_poll intervalSeconds: 300 method: get
uptimeApi- is an API which can be queried to get information about the current status of the BGPalerter process. By default the url is
http://localhost:8011/status. Such API returns a JSON that contains a boolean field
warning. If BGPalerter is not correctly working,
warningis set to true and the API will return a HTTP 500 status code. You can integrate this API in Nagios or in services like UptimeRobot (free).
uptimeHealthcheck- is a module that will periodically call the url provided in the configuration. This can be easily integrated with services like Healthcheks.io (free).
Where is the data coming from?
BGPalerter connects to public data sources (not managed by NTT) and the entire monitoring is done directly in the application (there are no NTT servers involved). A data source can be integrated with a
connector component. In this way you can also use your data if you would like.
At the moment BGPalerter connects automatically to RIS live, an amazing project by the RIPE NCC. RIS Live collects BGP updates coming from more than 600 peers. The updates are streamed to BGPalerter in real time for an unprecedented detailed and responsive monitoring.
The data collected by RIPE RIS is publicly available. Consider contributing to the project by peering with them.
While for production purposes it's usually enough to monitor some prefixes, for research purposes you might need to monitor the entire address space (e.g. to investigate on average convergence time). We put great effort in making BGPalerter suitable for research purposes. In particular, the application is designed to be able to handle many more BGP messages than the current RIS live streaming produces in total, with a small CPU and memory footprint. Additionally, researchers can implement their own
monitor method focusing only on the conditions to verify in the BGP messages without worrying about the rest of the data handling. More information here.
BGPalerter is an open source and self-contained tool that can be used for BGP monitoring.
Many more advanced features are available and documented here.
Here is how you can get in touch:
- For feature requests and bug reports, open an issue here.
- For direct feedback, contact Massimo Candela at massimo [at] ntt [dot] net or on Twitter at @webrobotics.
And last but not least, consider contributing to the code!
